What is meant by the term “stud welding”?
Stud welding refers to the technique of joining a shear stud to another metal item by the use of welding. There are a few other names for stud welding, including drawn arc stud welding and arc welding for short. The words “stud welding” and “shear studs” are often used in conjunction with the fabrication of composite floors and steel frames.
Shear stud welding machines: an introduction to the machinery
In a wide variety of construction and structural engineering tasks, shear stud welding machines are an indispensable tool. These machines have been developed expressly for the purpose of welding shear studs onto steel structures, which guarantees a connection that is both secure and dependable. It is vital to have a solid grasp of shear stud welding equipment in order to achieve structural stability and safety, regardless of whether you are working on a high-rise building, a bridge, or any other project that involves a significant amount of steel.
One of the fundamental aspects of shear stud welding is the process of attaching a shear stud, which is normally made of steel, to a base material that is also composed of steel. The link that was created as a consequence has an excellent load-bearing capability and makes it possible to transmit forces between various structural parts. In situations where composite steel-concrete buildings are prominent, this welding process is used to a significant degree.
Describe the procedure that is used for shear stud welding

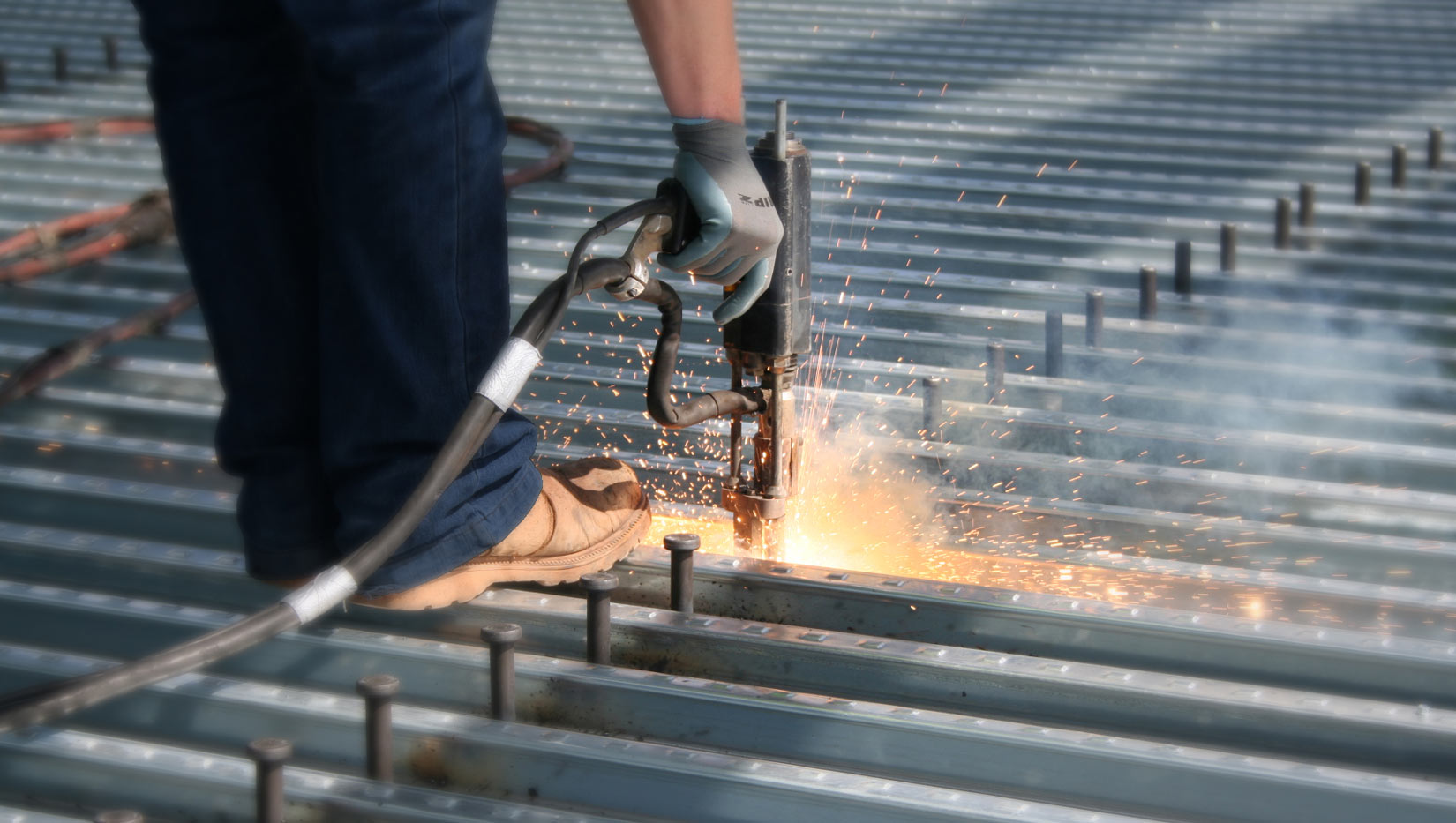

In most cases, shear studs are installed in situ with the assistance of a stud welding gun. Heating the end tip of a shear stud (or shear connection) is an essential step in the stud welding process. This is accomplished by using a powerful electric arc that is generated by a positive electric current.
Immediately after the trigger is activated, the studs are held in the welding gun at a height that has been predetermined above the parent material while a pilot arc is discharged. This is then followed by the main arc, which produces heat at a temperature more than 1400 degrees. As a result, the weld end of the stud begins to melt, and a puddle of molten material develops on the plate. Welding spatter is the name given to this molten alloy of metal. In order to complete the process of fusing the two components together, the shear stud is subsequently forced with force into the molten pool that is located on the surface of the parent material.
In spite of the fact that the length of time required for each weld procedure is contingent upon the nature and dimensions of the shear connection, the stud welding process may be completed in as low as 0.06 seconds. During the welding process, the length of a shear stud will be decreased by around 5 millimeters on average.
A list of factors to take into consideration when choosing a shear stud welding machine
- When it comes to choosing a shear stud welding equipment, there are a number of important aspects that you need to take into consideration. Due to the fact that these aspects may have a significant influence on the effectiveness and performance of the welding process, it is essential that you choose the appropriate equipment for your particular requirements.
- First and foremost, it is essential to determine the power and capacity of the shear stud welding equipment prior to beginning the process. It is necessary to ascertain the maximum diameter and length of the studs that you will be welding in order to accommodate the possibility that various projects will need for varying degrees of power. By doing so, you will be able to pick a machine that is capable of managing the load and producing results that are dependable and consistent.
- However, the welding process itself is also a significant consideration to take into account. The drawn arc and capacitor discharge welding techniques are both viable options for the operation of shear stud welding equipment. There are distinct qualities and benefits associated with each method, despite the fact that both approaches are successful.
- The drawn arc welding technique is well suited for high-strength connections and applications that need heavy-duty work, while the capacitor discharge welding technique is more appropriate for thinner materials and more rapid welding cycles. It will be easier for you to make an educated selection if you have a thorough understanding of the unique needs of your project.
